How a Biogas Plant Works – Components and Process Overview

A biogas plant is a sustainable solution for converting organic waste into renewable energy and valuable by-products. It operates through a series of controlled biological and mechanical processes, turning biomass such as manure, food waste, or agricultural residues into biogas and digestate.

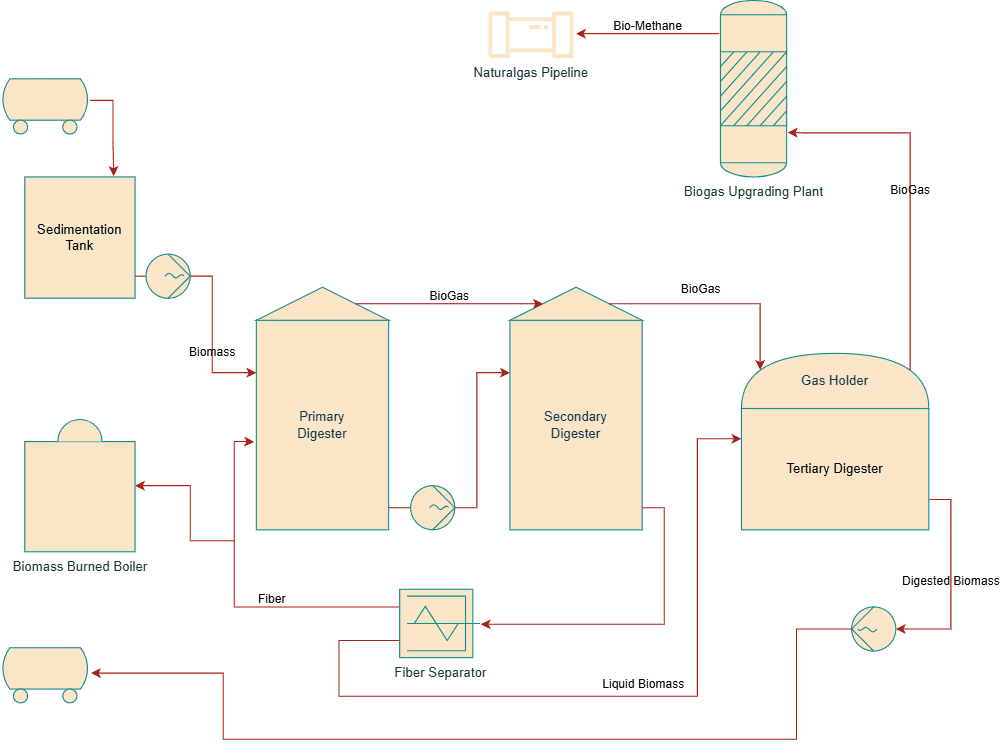

Key Components of a Biogas Plant

1. Pre-Treatment and Feedstock Handling
Organic material is first collected and processed in pre-treatment tanks. Here, unwanted materials are removed, and the feedstock is homogenized to ensure consistent quality. Pumps and mixers may be used to maintain flow and prevent sedimentation.

2. Buffer and Storage Tanks
Buffer tanks ensure a steady and continuous supply of feedstock to the digesters. These tanks act as intermediate storage and help regulate flow during operation or maintenance.

3. Anaerobic Digesters (Reactors)
The core of the plant consists of one or more anaerobic reactors—typically arranged in stages (primary, secondary, and sometimes tertiary). In these sealed tanks, microorganisms break down the organic matter in the absence of oxygen, producing biogas (a mix of methane and CO₂) and digestate (nutrient-rich slurry).

4. Hygienization Units
Some plants include hygienization systems that heat the biomass to eliminate pathogens before or after digestion. This is especially important for substrates like food waste or animal by-products.

5. Heat Exchangers
To optimize microbial activity, the biomass is often heated to mesophilic or thermophilic temperatures. Heat exchangers recover heat from the process or from external sources to maintain ideal reactor conditions.

6. Gas Treatment and Utilization
The produced biogas is routed through filtration and dehumidification units to remove impurities like hydrogen sulfide or water vapor. The clean biogas can then be used for electricity generation, heating, or upgraded to biomethane for injection into the gas grid or as vehicle fuel.

7. Digestate Handling
After digestion, the remaining slurry is pumped to storage tanks. It can be further separated into solid and liquid fractions using fiber separators. The solid part can be used as compost or soil amendment, while the liquid can serve as a nutrient-rich fertilizer.

8. Ventilation and Emission Control
To ensure environmental safety and workplace health, the plant includes ventilation systems, odor control units, and safety features like overpressure valves and emergency flaring.

Optional Features

Depending on the project requirements, the plant may include additional features such as:

• Combined Heat and Power (CHP) units for on-site energy production

• Control systems for remote monitoring and automation

• Cleaning-In-Place (CIP) systems for hygienic maintenance
